Case Studies

About Projects

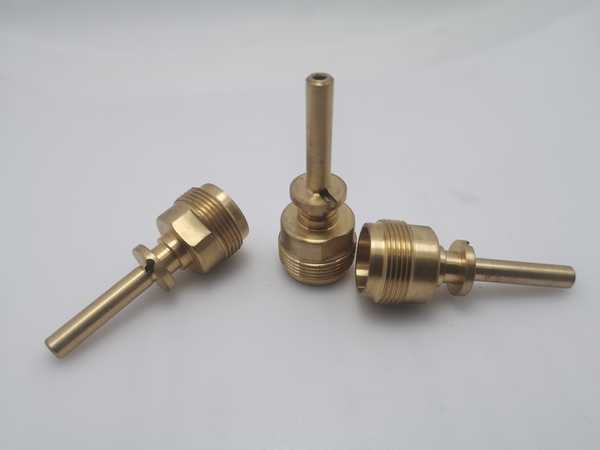

This is a CNC machined ventilation valve for medical equipment. The material is required to meet the EU medical device standards. The surface of the product is clean and free of dirt. The concentricity of the exhaust port is ±0.03MM. The shape remains horizontal and cannot be deformed. There are 8 dimensional tolerances of ±0.05. The hole on the side of MM. is 90° perpendicular to the whole product, which is a great challenge for equipment and CNC machining experience.

About Products

The whole product is processed by precision CNC lathe, the center hole is 2MM in diameter, to prevent the drill bit from swinging during processing, and the custom fixture fixes the raw materials. There is a hole with a diameter of 2mm on the side, which is perpendicular to the center of the product. It needs to be very careful and accurate. The surface is smooth and free of burrs.

About The Application

This CNC lathe machined copper alloy part is the ventilation valve head of the medical product. The raw material needs to use the international medical standard copper alloy. Products require precise assembly and use, and quality will affect the function of the overall medical device.

Technical Support

Mulan MFG helps customers improve the 3D model and formulates detailed processing procedures to help customers solve the problem of side holes and center holes easily deformed. And got high-quality products. Successfully delivered within 20 days.

Mulan MFG is Ideal On-Demand Manufacturer.



Mulan Strong Production Capacity.



One-Stop On-Demand Manufacturing Service.



Global 3000+ Business Buyers Choose Mulan MFG.

Strong OEM & ODM Production Line:

Mulan MFG focuses on manufacturing products on demand for 18 years, and customizes precision metal products, advanced manufacturing equipment and production line monitoring system for automobile products according to customers’ requirements.

Real Factory Price:

From raw materials to product packaging delivery, all processes are controlled, the Real factory price supplier.

Complete Customized Supply Chain:

single raw material warehouse, rapid production of products, mold manufacturing, metal surface coating, chemical plating, heat treatment, metal hardening supply chain, the true one-stop manufacturer.SGS Verified & Audited.

On-Time Delivery:

Develop a detailed production schedule and present each production link to the customer. With an emergency response plan, we can deliver high quality products within the monthly delivery time.

Free Technical Support:

Free support for 3D model design, production process optimization, scan 3D drawings according to samples, graphic drawings, Sw/Ug/Proe/Catia/CAD

100% Quality Control Report:

Provide detailed quality control report, product quality transparency, making the procurement easier, safer and more reliable.

7*24 Hours Online Service:

15 professional English sales managers, 7*24 hours online reception of every customer consultation, perfect to deal with any problem.

FAQ

Q1:Are you a manufacturer?

A1:Yes, we are a medium size ISO13485/ISO9001-2015 certificated manufacturer with a wide range of advanced equipment.Warmly welcome to visit our factory so that you can make sure this point.

Q2:What is the MOQ?

A2:Minimum Order Quantity is one piece/set, The quantity also determines the cost of production. When you do mass production, you can get a low quotation on the assembly line. The low volume order will affect the overall quotation due to more labor costs, but Mulan MFG promises that you will receive a very reasonable and competitive quotation.

Q3:Can you do the mass production?

A3:Yes,we are a factory which can provide service of precision CNC machining, rapid prototyping, wire cutting, tooling building and etc.After you confirm the samples, we can start mass production.It is very convienient for customers to choose us as a one-stop solution supplier.

Q4:Which 3D drawing files should go with the machines?

A4:CNC machines only read *IGS,*STP,*STEP,*IGES,*X-T format, for *STL format,it goes with 3D printer and SLA.

Q5:Is it possible to know how are my products going on without visiting your company?

A5:We will offer a detailed production schedule and send weekly reports with pictures or videos which show the machining progress.

Q6:Will my drawings be safe after sending to you?

A6:Yes, we will keep them well and not release to third party without your permission.

Q7:What shall we do if we do not have drawings?

A7:Please send your sample to our factory,then we can copy or provide you better solutions.Please send us pictures or drafts with dimensions(Length,Hight,Width),CAD or 3D file will be made for you if placed order.
