Material : Aluminum Alloy

Tolerance : +/-0.2mm

MOQ : 1,000 Pcs

Process : stamping

Type : Customized

Payment Terms : L/C, T/T, Western Union, Paypal, Money Gram

    • Material: Aluminum Alloy
    • Tolerance: +/-0.2mm
    • MOQ: 1,000 Pcs
    • Process: stamping
    • Type: Customized
    • Payment Terms: L/C, T/T, Western Union, Paypal, Money Gram

    Case Studies

    About Metal Stamping Projects

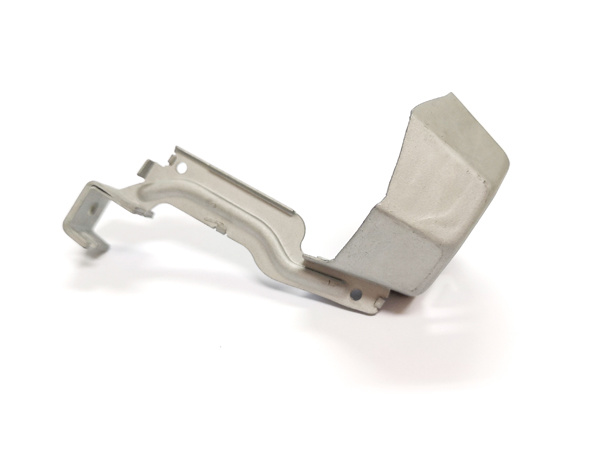

    This is a very challenging project. About 10 years ago, Mulan MFG was commissioned to produce this car logo accessory. This product is a big challenge to the aluminum alloy stamping manufacturing technology, and in many details contradicts the existing stamping technology. The product design is made of aluminum alloy 5052, with a thickness of 0.5mm. The product is divided into 12 steps, which are welded and assembled by three parts. The tolerance of the product at the rear support frame is ±0.15mm, which needs to be met by the assembly robot to quickly assemble to the car. There are 5 important assembly positions, and no error is allowed. Whether it is stamping or welding, it is a test of production equipment and tooling technology. After 40 days of research and development, it has successfully delivered high-quality samples, obtained the auto manufacturer’s license, and supplied it in 5 years of continuous cooperation. More than 100,000 high-quality products.

    Click here to learn more about the production capacity of Mulan MFG.

    About Metal Stamping Parts

    This aluminum alloy stamping product is divided into 12 steps and three parts are assembled by welding.

    1. The main body of the LOGO is formed by a drawing and stamping process, which is stretched to a depth of 8mm through three times of drawing and stamping (octagonal), and is surrounded by a slope inclined by 35°. A very precise trimming mold is required, and the logo font on the bottom must not have any wrinkles and deformations.

    2. The link rod is made by welding two mirrored stamping products. The main body of the product has five important assembly dimensions after welding and splicing. The required tolerance is ±0.05mm and the position tolerance is ±0.1mm. This requires custom-made very precise tooling fixtures. When welding, it is necessary to ensure that the product cannot be loosened, and deviations of more than 2° are not allowed, and the welding strength must be consistent. The material is only 0.5mm aluminum plate, which is easy to be welded poorly or deformed by heat.

    3. Combining the three components by high-precision welding, Mulan MFG has tried more than 40 times, and finally produced the perfect product for the customer.

    About The Application

    This product is applied to the logo of the internal parts of the car. It needs to meet the normal work of the assembly robot. The precision of the assembly is very high. The defective products will directly affect the smooth progress of the automobile manufacturing production line. Therefore, Mulan MFG conducts the whole process of mass production aluminum alloy stamping products. Sub-sampling inspection, and customized precision inspection equipment. Because it is an appearance part, the logo mark needs to be displayed, so there are no processing marks and bruises on the surface.



    Mulan MFG is Ideal On-Demand Manufacturer.



    Mulan MFG Strong Production Capacity.


    Plastic Molding service CNC Machining Service
    Injection molding service CNC Milling Service
    Blow Molding Service CNC Turning Service
    Rotation Molding Service Rapid Prototyping Service
    Mold Tools Manufacturing
    Sheet Metal Fabrication Metal Casting Service
    Metal Stamping Service Sand Casting
    Sheet Metal Bending Service Die Casting
    Deep Drawing Service Investment Casting / Lost Wax Casting
    Laser Cutting Service Gravity casting
    Metal Welding Service



    One-Stop On-Demand Manufacturing Service.


    6061-T6, 6063-T5, 7075-T6, 2011, 2017, 2024, 5052, 5083, 6082, etc

    Stainless steel

    SUS303, SUS304, SUS316, SUS316L, SUS430, SUS440, SUS420, SUS201, etc.


    Q235, 20#, 45#, Cr12, SKD11, A2, 40Cr, 16Mn, Cr12Mov, etc.

    Carbon Steel

    1010, 1015, 1020, 1030, 1035, 1040, 1045, etc.

    Free Cutting Steel

    1211, 12L13, 12L14, 1215, etc.


    C11000, C10200, C12000, C26000(HPb59), C36000(C26800), C38500(HPb58, C27200(CuZn37), C28000(CuZn4


    PVC, PE, PMMA, POM, Telfon, Delrin, PEEK, Nylon, ABS, PC, PP, PA6, PA66, etc.


    +/-0.05mm  ( ISO2768mK )

    Lead Time

    7-25 Days


    DIN, ASTM, GB, ANSI,GB, EN, API650, China GB Code, JIS Code, TEMA, ASME.
    Production Type Follow the customer’s design


    PE Bag, Paper carton box, plywood case/pallet/crate Customize Wooden Boxes, Cartons and Metal Boxes AC

    Surface Treatment

    Galvanized (zinc-plated, nickel-plated, chrome-plated, silver-plated),powder coating/oil painting, polishing (mirror polishing, electrolytic polishing),brushing, sand blasting, hot-dip galvanized
    Our products include: gringing parts, machining parts, turning parts, lathe parts, milling parts, CNC milling parts, CNC machining parts, CNC turning parts, CNC lathe parts, CNC metal parts, stamping parts, casting and forging parts, assembly service, laser cutting parts, flange and fitting, die casting parts, metal stamping parts, gear and transmission, aluminum profile, automation group, punch parts, and all kinds of custom/customize parts.



    Global 3000+ Business Buyers Choose Mulan MFG.

    Strong OEM & ODM Production Line:

    Mulan MFG focuses on manufacturing aluminum alloy stamping products on demand for 18 years, and customizes precision metal products, advanced manufacturing equipment and production line monitoring system for automobile products according to customers’ requirements.

    Real Factory Price:

    From raw materials to product packaging delivery, all processes are controlled, the Real factory price supplier.

    Complete Customized Supply Chain:

    single raw material warehouse, rapid production of products, mold manufacturing, metal surface coating, chemical plating, heat treatment, metal hardening supply chain, the true one-stop manufacturer.SGS Verified & Audited.

    On-Time Delivery:

    Develop a detailed production schedule and present each production link to the customer. With an emergency response plan, we can deliver high quality products within the monthly delivery time.

    Free Technical Support:

    Free support for 3D model design, production process optimization, scan 3D drawings according to samples, graphic drawings, Sw/Ug/Proe/Catia/CAD

    100% Quality Control Report:

    Provide detailed quality control report, product quality transparency, making the procurement easier, safer and more reliable.

    7*24 Hours Online Service:

    15 professional English sales managers, 7*24 hours online reception of every customer consultation, perfect to deal with any problem.



    Q1:Are you a manufacturer?

    A1:Yes, we are a medium size ISO13485/ISO9001-2015 certificated manufacturer with a wide range of advanced equipment.Warmly welcome to visit our factory so that you can make sure this point.

    Q2:What is the MOQ?

    A2:Minimum Order Quantity is one piece/set, The quantity also determines the cost of production. When you do mass production, you can get a low quotation on the assembly line. The low volume order will affect the overall quotation due to more labor costs, but Mulan MFG promises that you will receive a very reasonable and competitive quotation.

    Q3:Can you do the mass production?

    A3:Yes,we are a factory which can provide service of precision CNC machining, rapid prototyping, wire cutting, tooling building and etc.After you confirm the samples, we can start mass production.It is very convienient for customers to choose us as a one-stop solution supplier.

    Q4:Which 3D drawing files should go with the machines?

    A4:CNC machines only read *IGS,*STP,*STEP,*IGES,*X-T format, for *STL format,it goes with 3D printer and SLA.

    Q5:Is it possible to know how are my products going on without visiting your company?

    A5:We will offer a detailed production schedule and send weekly reports with pictures or videos which show the machining progress.

    Q6:Will my drawings be safe after sending to you?

    A6:Yes, we will keep them well and not release to third party without your permission.

    Q7:What shall we do if we do not have drawings?

    A7:Please send your sample to our factory,then we can copy or provide you better solutions.Please send us pictures or drafts with dimensions(Length,Hight,Width),CAD or 3D file will be made for you if placed order.
